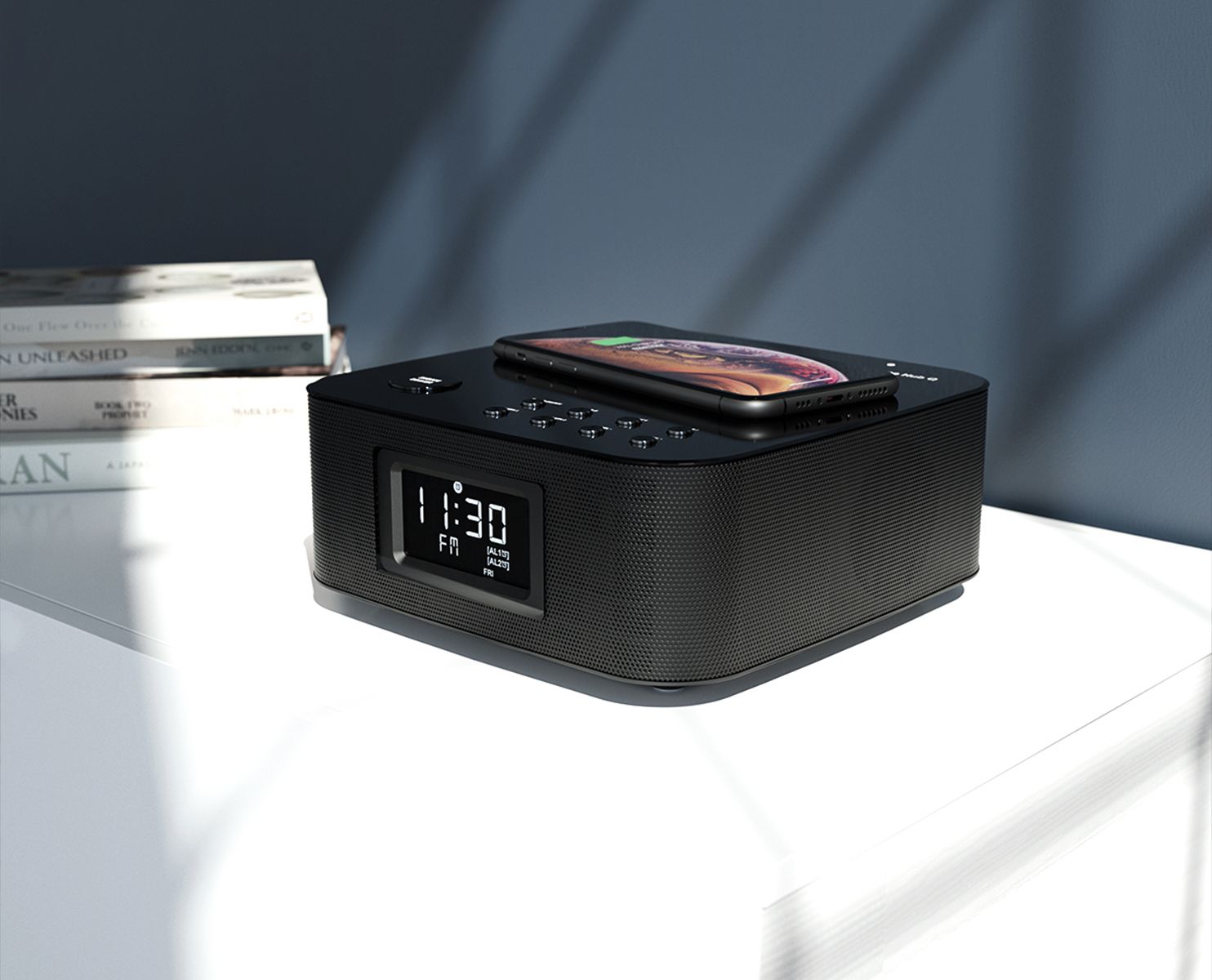

Home Hub Q Wireless Audio Speaker & FM Radio with Qi Wireless Charging

1. In standby mode, press and hold the CLOCK button for a few seconds, then the hour indicator will blink.
2. Set the hour with the ▲ button or ▼ button.
3. Press the CLOCK button to confirm, minute indicator will blink.
4. Repeat steps 2-3 to set the minutes, day, month and year.

1. Ensure that you have set the clock correctly.
2. Press ▲/▼ on the remote control to select an alarm sound source: FM tuner or buzzer.
3. Press and hold ALARM 1 or ALARM 2. The hour digits will begin to blink.
4. Press ▲/▼ repeatedly to set the hour. Press either ALARM 1 or ALARM 2 depending on which you are setting to move on to setting the minutes.
5. The minute digits begin to blink, Use the ▲/▼ buttons to select the minute and Press either ALARM 1 or ALARM 2 depending on which you are setting to move on to the next option.
6. Use the ▲/▼ buttons to select whether the alarm will ring for the whole week, on weekdays, or at the weekend. Press either ALARM 1 or ALARM 2 depending on which you are setting to move on to the next option.
7. Use the ▲/▼ buttons to select the alarm volume. Press either ALARM 1 or ALARM 2 depending on which you are setting to move on to finish setting the alarm.

Once completed, to activate and Deactivate the Alarm Timer:

With the time correctly set, Press either ALARM 1 or ALARM 2 to activate or deactivate the timer.

Pressing once will display the alarms settings - time, volume, source etc. and pressing the alarm button again will enable or disable the alarm.

• If the timer is activated, [AL1 Clock Icon] or [AL2 Clock Icon] is displayed.
• If the timer is deactivated, [AL1 ] or [AL2 ] the alarm clock icon disappears.

1. To prevent the displacement of mobile devices, please put anti-slip mat first.
2. Make sure your mobile devices are aligned to the Home Hub Q’s charging area.
• When mobile devices play music while wirelessly charging, mobile devices may rattle against the Home Hub Q, please reduce the volume.
• When mobile devices are not charging, please check whether the mobile device is resting within the charge area.

1. In the STANDBY mode, press and hold the SNOOZE button on the remote control for few seconds, then the unit will enter the CLOCK SYNC mode.
2. Press ▲/▼ on the remote control or on the unit to switch the clock synchronization modes:
   • RDS Only synchronize with the RDS radio station.
   • OFF Turn off the clock synchronization function, only adjust the clock manually.
3. Then press the Play/Pause button on remote control or on main unit to confirm.
