Plug one end of a 3.5mm audio input cable (included) into the Line in on the unit. Before use, disconnect any cables connected to the Stereo RCA Inputs.
Plug the other end of the cable into the audio output/headphone output on an MP3 player or other audio source.
Press the POWER button on side panel or POWER button directly on the remote control to switch on the unit.
One touch the SOURCE button repeatedly or directly press LINE in button on remote control to enter LINE in mode. The mode indicator will turn green.
Audio played through the connected device will now be heard through the speakers.
You will need: An audio source with an optical audio output and a digital optical audio cable - INCLUDED
Connect the Digital Optical Audio cable to the optical output on the audio source and to the Optical Input on the speaker bar.
Press the POWER/SOURCE button on side panel or POWER button directly on the remote control to switch on the unit.
Press the OPTICAL button on the remote control to switch to Optical mode or one touch POWER/SOURCE button on main unit repeatedly to select the Optical mode. The mode indicator LED will turn Yellow.
Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical Audio and are turned on.
Audio from the connected audio source will now be played through the speakers.
Using the native controls on your connected device, make sure the audio settings are set to PCM or optical audio and are turned on.
It is the installer responsibility to verify that the wall safely supports the total weight of the Soundbar.
- Additional tools (not included) are required for the installation.
Drill 2 parallel holes (Ø3-8mm each according to wall type) in the wall. The distance between 2 holes should be 580mm.
Firmly fix a wall plug (included) into each hole in the wall if necessary.
Insert a screw (included) into each dowel. Make sure to leave a 5mm gap between the wall and the screw’s head. Lift the Bar over the heads of the screws and slot into place.
Yes, Simply connect your device to the Studio Eclipse Soundbar and make sure it's in BT Wireless Audio mode to play music directly from your BT Wireless Audio connected device.
Yes, The Studio Eclipse Soundbar is lightweight which allows it to be wall mounted without the need for additional brackets or frames. Simply match the attached bracket holes on the rear of the UHD2 to the ones you've drilled into your wall / cabinet / etc. and hang it makging sure its firmly attached.
User Manual
Warranty Card
Power Cable
Remote Control
Wall Mounts
Optical Cable

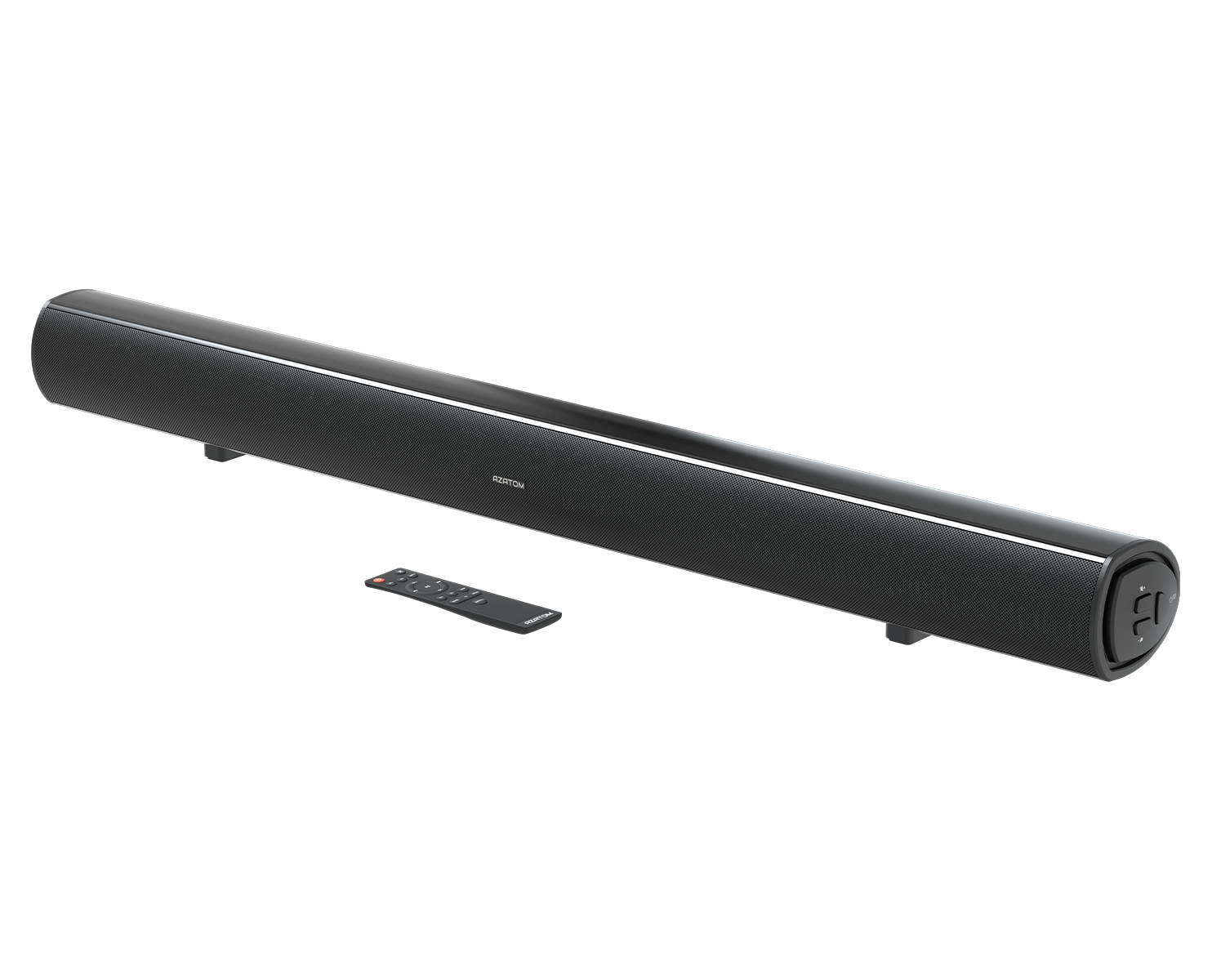

Studio Eclipse Soundbar
Download Studio Eclipse User Manual for more detailed information.
Download User Manual - Need more help? Simply download the
user manual for more detailed information.
