The ARC (Audio Return Channel) function allows you to send audio from your ARCcompliant TV to your sound bar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the volume output (VOL +/- and MUTE) of the sound bar.
Connect the HDMI cable (not included) from unit's HDMI (ARC) socket to the HDMI (ARC) socket on your ARC compliant TV. Then press the remote control to select HDMI ARC.
Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On.
The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC function, please refer to your TV owner’s manual.
Only HDMI 1.4 cables can support the ARC function.

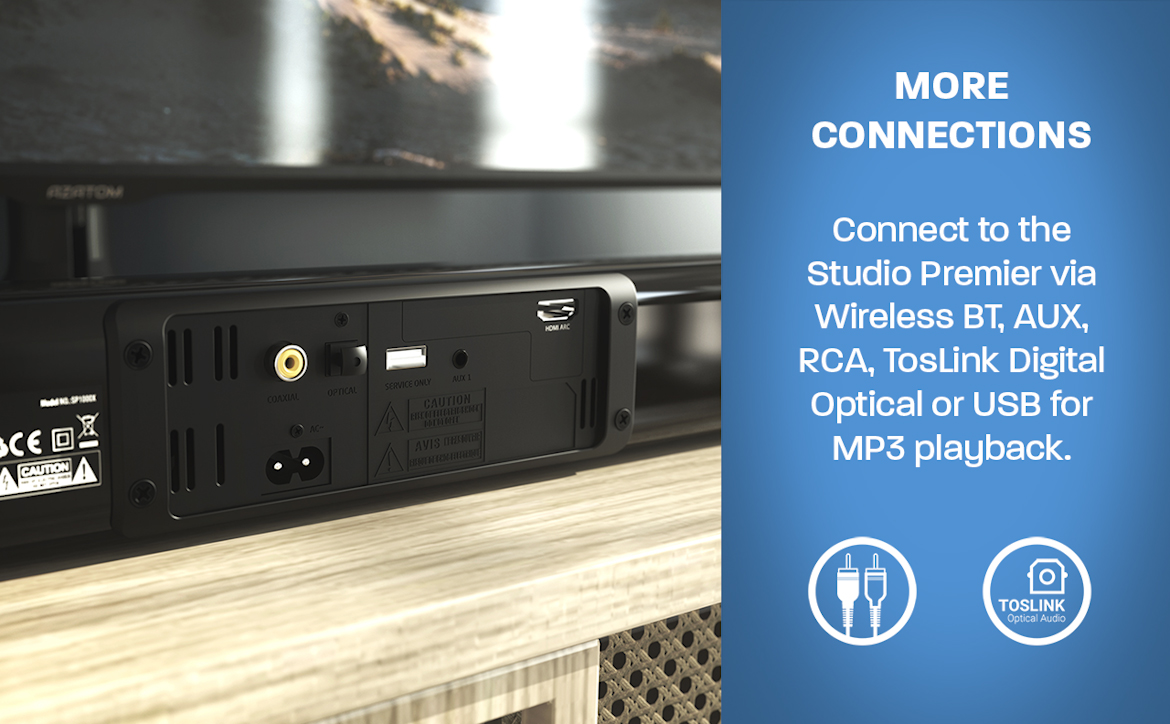

Remove the protective cap of the OPTICAL socket, then connect an OPTICAL cable (not included) to the TV’s OPTICAL OUT socket and the OPTICAL socket on the unit.
Tip: While in HDMI ARC/OPTICAL mode, if there’s no sound output from the unit and the HDMI ARC/OPTICAL lights flashes quickly, you may need to activate PCM signal output on your source device (e.g. TV,DVD or Blu-ray player).
Download User Manual - Need more help? Simply download the user manual for more detailed information.
Yes, The Studio SP1000X Soundbar is lightweight which allows it to be wall mounted without the need for additional brackets or frames. Simply match the attached bracket holes on the rear of the UHD2 to the ones you've drilled into your wall / cabinet / etc. and hang it makging sure its firmly attached.
